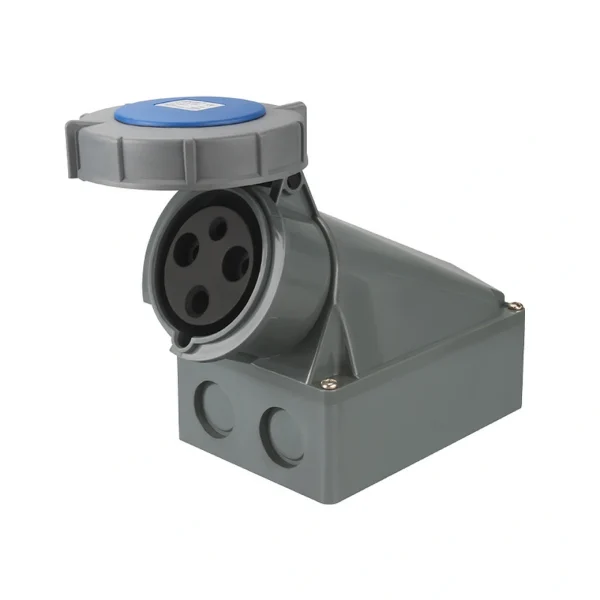

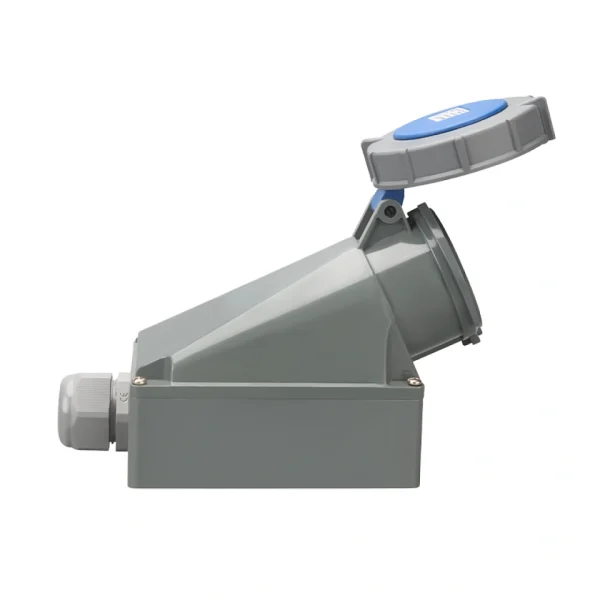

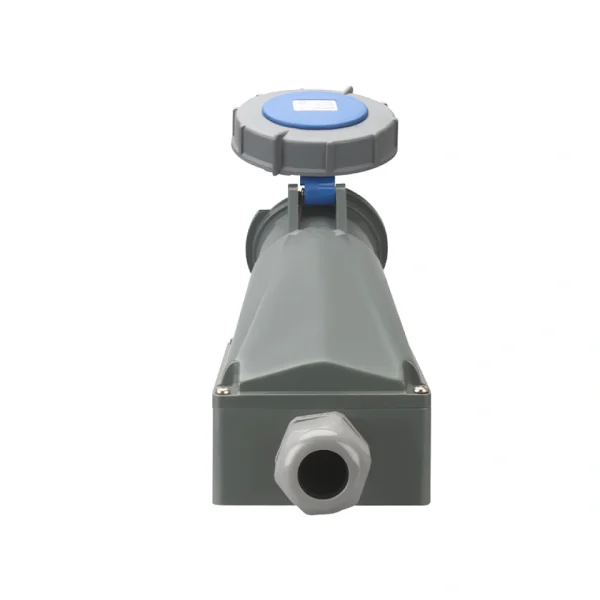

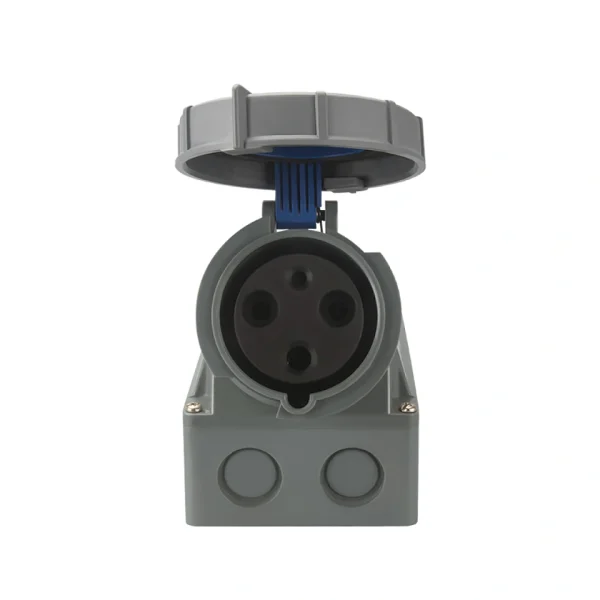

WALL SOCKET 3P63A/3P125A IP67 industrial waterproof socket FNP2-133F/FNP2-143F

Price range: ₭782.500 through ₭2.097.500

SKU: N/A Category:
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Design and production, product specifications are FNP2-133F 63A 3Pin 220V industrial exposed socket, the socket is 2P+E, the range is 220V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

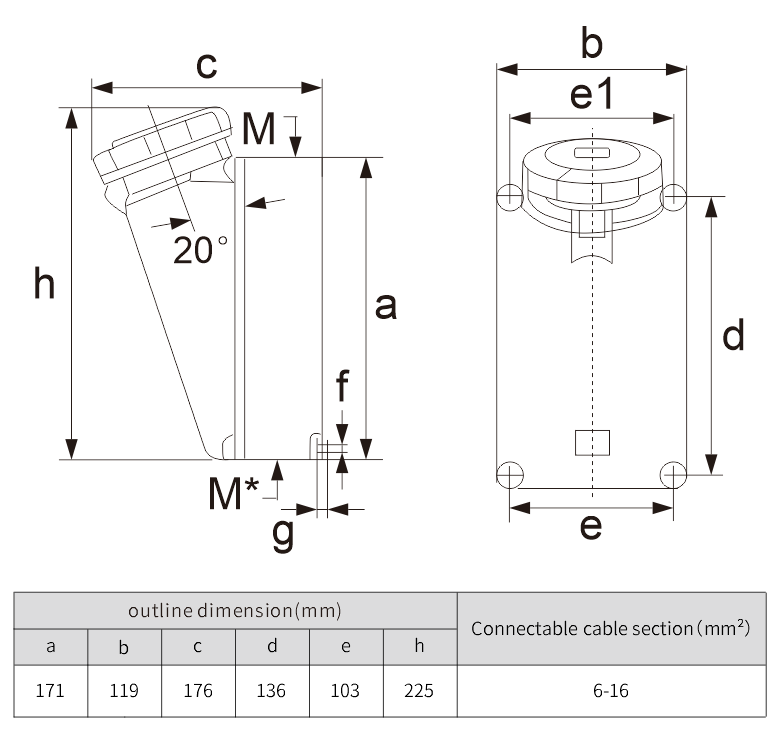

Outline installation ruler diagram
63A   2P+E   6H   200-250V   Protection degree IP67
IP67 Waterproof 3 Pin 63A Industrial Socket Receptacle
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Design and production, product specifications are FNP2-143F 125A 3Pin 220V industrial exposed socket, the socket is 2P+E, the range is 220V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
Outline installation ruler diagram
125A   2P+E   6H   200-250V   Protection degree IP67
125A 3P 240V panel mount socket IP67 electrical switches
#of Poles

3-PIN

Amperage

63A, 125A

Protection Degree

IP67
